~A. Holgersson Beiträge Gast Private Nachricht senden |
Veröffentlicht 20.06.2005, 23:10 - 000 - in "TC 2000 Measures" - [417]
Anybody here who can provide us with the measures and weights of a TC 2000 strut crane from Demag? Need the data for planning the shipping of that crane. |
  |
(Gast) |
|
TDKv Dienstleister für Kranvermieter aus Detmold 1101 Beiträge Admin
Private Nachricht senden |
Veröffentlicht 22.06.2005, 13:04 - 001 - in "TC 2000 Measures" - [418]

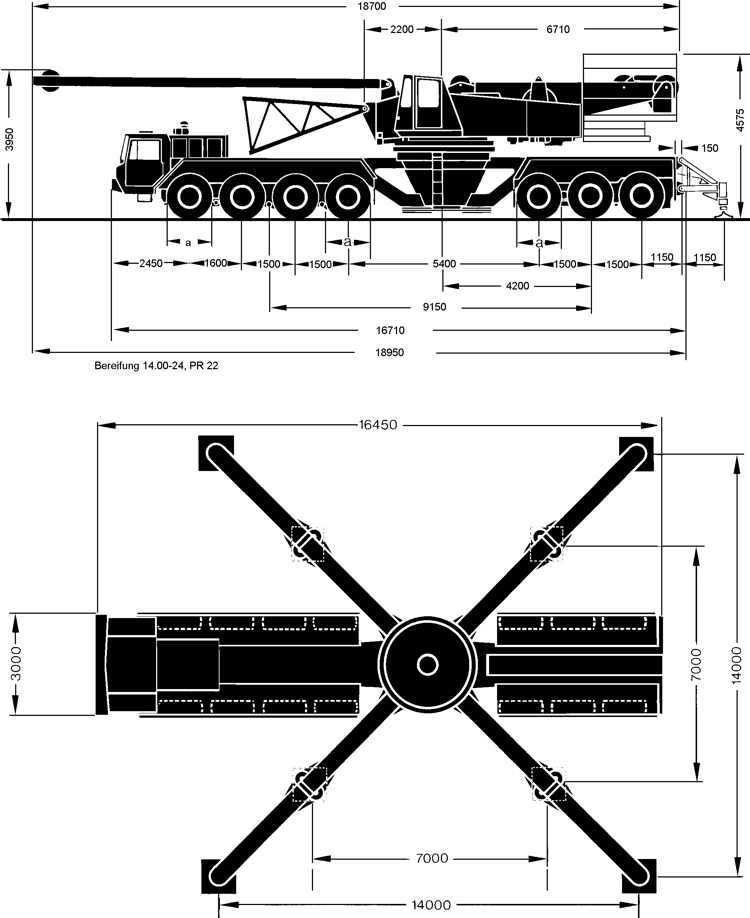

This is the measure drawing from the Demag brochure:
The crane has a width of 3m in transport configuration. Measures and weights of the outriggers, counterweights and boomparts are not listed in the brochure. ___ Carsten Thevessen
Der Beitrag wurde am 22.06.2005 um 13:11 Uhr von TDKv editiert. |
| |
|
Matthias aus Korbach 56 Beiträge
Private Nachricht senden |
Veröffentlicht 07.07.2005, 21:49 - 002 - in "TC 2000 Measures" - [434]
Is it the same like the TC1200? Does the TC 2000 have more counterweight, or are they different in other things? ___ Grüße Matthias |
| |
|
Franklin Thomas 25 Beiträge Private Nachricht senden |
Veröffentlicht 07.10.2005, 16:56 - 003 - in "TC 2000 Measures" - [492]
The both types are rather identic, but the TC 1200 has smaller outriggers of only 10 to 10 m. ___ Regards
|
||
| |
